Overview:

• This document will guide you through manual Internet configuration requiring DNS entries in the Network settings - TCP/IP properties.

1. Log on as the user Manager.
2. Remove RM ClassMate system guard with the Engineer's password. For more information how to do this Click Here
3. Log on as the user Manager
4. Right click on Network Neighborhood and click on Properties.

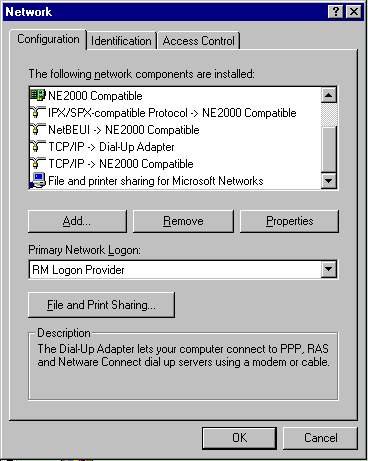

5. The following screen will appear. Note that some of the entries are machine specific, so your entries may differ slightly.

6. Click on TCP/IP ->Dial-Up Adapter, then click on Properties.

7. Click on the DNS Configuration tab - if the settings for the DNS servers are not there (i.e. the larger white box below DNS Server Search Order is empty) type in the following in the smaller box: 194.238.48.3
8. Click on Add.
9. The settings should now appear in the larger white box below.
10. Again in the smaller box, type in: 194.238.48.2
11. Click on Add.
12. Write down the numbers in the DNS Server Search Order box - these will be needed later.
13. Click OK to close the first window and click OK to close the next.
14. Log off as Manager by clicking on Start button and clicking on the Logoff Manager option, click Yes when prompted.
15. Log on as the user Internet.
16. Right click on the top grey toolbar and click on Maintain.
17. Enter the Manager's password and press Enter.
18. Double click on Explorer in the Manager's Tools window.
19. In the left hand pane of the Windows Explorer window, use the down arrow to scroll down to the bottom of the list of entries to Dial-Up Networking.
20. Double-click on Dial-Up Networking on the right-hand side there should be a connection icon usually labelled IFL.
21. Right click on the Internet connection icon (IFL) and click on Properties.
22. Click on the Server Types tab.
23. Ensure that there is a tick in the following boxes ONLY ... Enable software compression and TCP/IP.
24. Click on the TCP/IP Settings button near the bottom of this window.
25. Ensure there is a black dot in Server assigned IP address, if there is not then click on the white dot.
26. Click on Specify Name Server Addresses bullet to enable DNS input.
27. Click in the first section in Primary DNS and type 194.238.48.3.
28. Click in the first section in Secondary DNS and type 194.238.48.2.
29. Ensure both check boxes below are ticked, if not then click on the relevant box to change this.
30. Click OK and OK once again.
31. Click on the cross box in the top right hand corner of the screen to close Explorer.
32. Exit Maintenance mode by right clicking on the grey toolbar at the top of the screen and clicking on Exit Maintenance Mode.
